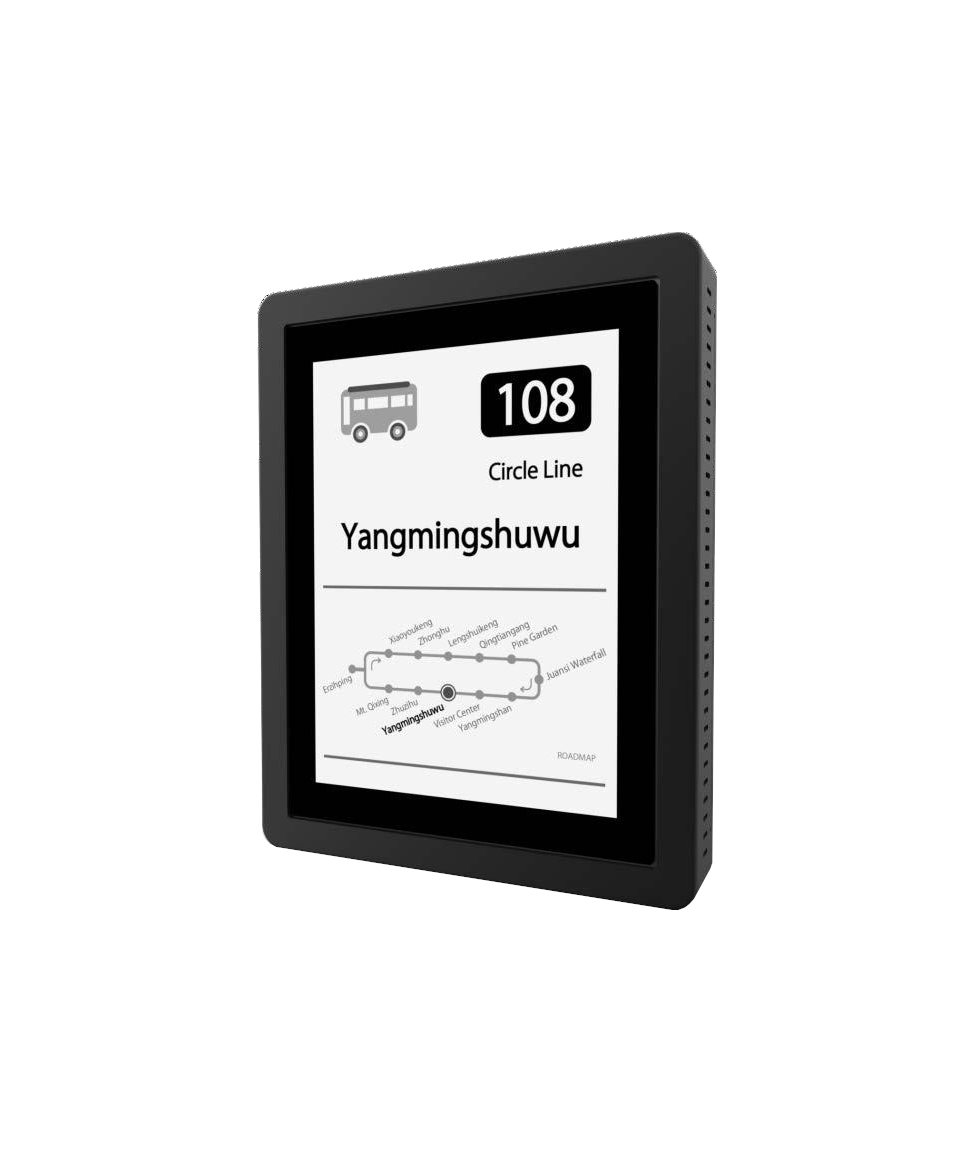

13.3″ Outdoor Monochrome EPD Signage

Outdoor 13.3″ Electronic Paper Monochrome Display for Digital Signage Remote Application.


Features
  • Sunlight Readable
  • Ultra Wide Viewing Angle
  • Wide Operation Temperature Range -15ºC ~ 65ºC
  • IK07 Compatible Anti Vandalic Tempered AR Glass
  • IP66 Compatible Moisture and Dust Protection
  • UV Cutting and Anti Reflection
  • Low Power Consumption
  • 4G Connection & Ethernet
  • Optional Bluetooth/WIFI
  • Anti Theft Fixing Mechanism
  • Front Light Optional
  • Supports Local Playlist
  • Remote Content Update by HTTP Server, CMS Server or Web
Description

Model:

M13Qxx

Display:

13,3″ EPD Monochrome eInk

Display Area:

221 x 269 mm

Resolution:

1200 x 1600

Color:

16 Gray Level (monochrome)

Contrast Ratio:

12:01

% Reflectance:

40

Front Light:

LCS-M13Q4x: with Front Light

LCS-M13Q3x: without Front Light

Flash Size:

eMMC 8G

RAM:

DDR 2 LP 512MB

Key:

Power on/off (on back) / Reset Hole (on back)

G Sensor:

Portrait Mode & Landscape Mode

Connectors:

Micro USB 2.0 / SD Card Slot / Mini SIM / DC / Ethernet RJ45 (optional)

LED indicator:

Blue blinking on Backside for Power On

Connectivity:

LCS-M13Qx6: 4G LTE, LAN

LCS-M13Qx7: BT4.1 / Wi-Fi 802.11b/g/n, LAN

OS:

Android 4.4.2

Power Consumption:

Static Page: 0mA / 0V
Standby: 300mA / 12V (depending on configuration, TBD)
Page Change: 600mA / 12V (depending on configuration, TBD)

Tempered Glass:

5 mm AR Glass

Outdoor Design:

Compatible with IP66 & IK07

Bezel Width:

22 / 22 / 22 / 22 mm (Left/Right/Top/Bottom)

Dimension (L x W x H):

365,4 x 290,6 x 48,9 mm

Operation Temp.:

0°C~50°C (4bit image), -15°C~0°C (1bit image), 50°C~65°C (1bit image)
